2. INSTALLATION
B. Retainer Removal
Retainers are attached to the machine to protect it from vibration during transportation. Before beginning installation, remove these.
Perform this task with all power switches left switched off.
Otherwise sudden movement of the machine may cause injury.
- Remove all retainers. Any that remain may cause faulty operation or breakdown when the power is switched on.
- Store these retainers carefully, because they are needed again when transporting the machine for relocation or the like.

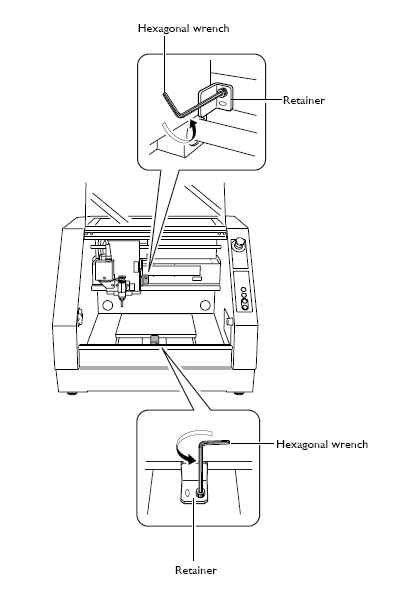

- Remove the screws shown in the figure, then detach these retainers.
- Mount the screws at its original location on the machine.
