Training Project - PDA

Step 2 - Changing The Cutting Tool

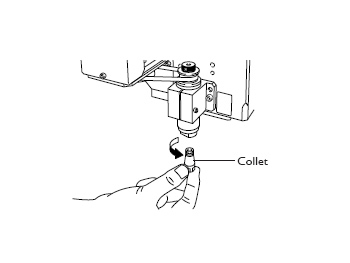

Changing Tool #1 A. Now, locate the spindle. You will need the collet and square tip tool from your toolkit. Insert the collet from underneath, as shown.

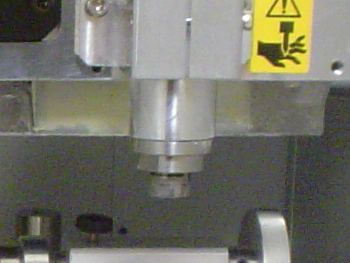

Changing Tool #2 B. Hand tighten the collet to be snug.
Changing Tool #3 C. Insert the tool into the spindle.

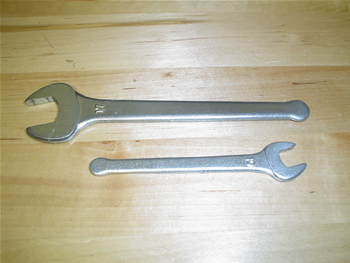

Changing Tool #4 D. Now you will need the spanners from the box that came with the MDX-40.

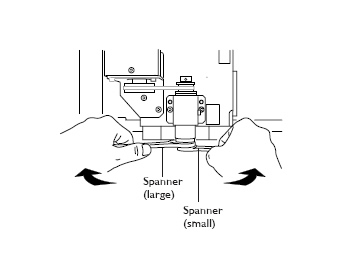

Changing Tool #5 E. Tighten the collet using the spanners.
